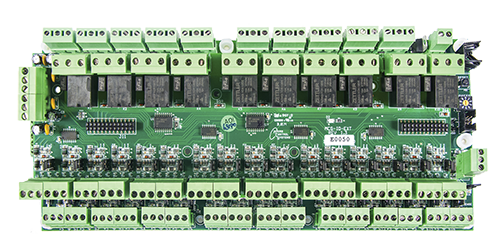

MCS-IO-BASE has sixteen 0-5vdc sensors inputs, ten 230vac 5amp relays
outputs,
and four 0-10vdc analog outputs that can be expanded to thirty-two 0-5vdc
sensors inputs, twenty 230vac 5amp relays outputs, and eight 0-10vdc analog
outputs by pairing with the -EXT Board within the footprint of the BASE
board.
MCS-SI-BASE has sixteen 0-5vdc sensors inputs, and four 0-10vdc analog
outputs that can be expanded to thirty-two 0-5vdc sensors inputs, and eight
0-10vdc
analog outputs by pairing with the -EXT Board within the footprint of the -BASE
board.

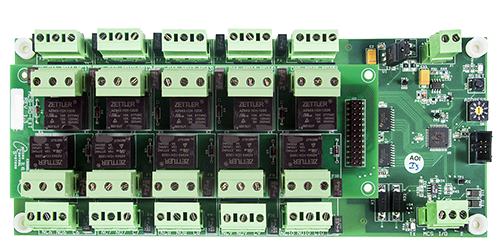

MCS-RO-BASE has ten 230vac 5amp relays outputs that can be expanded to
twenty 230vac 5amp relays outputs by pairing with the -EXT Board within the
footprint of the -BASE board.

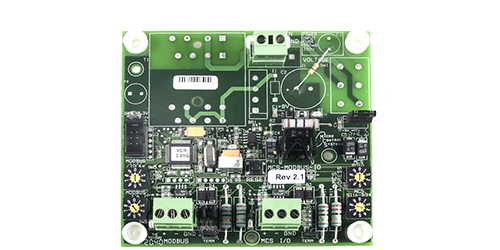

MCS-MODBUS-IO-12, mounts with four #6 sheet metal screws through nylon
collars at corners of board. The MCS-MODBUS-IO-12 gives the MCS-MAGNUM-12 the
ability to act as a Modbus Master using the Modbus RTU Protocol. This allows the
MCS-MAGNUM-12 to communicate to Modbus slave devices (such as Variable Frequency
Drives, Compressors, etc.) to send and access parameters. The MCS-MODBUS-IO-12
performs like an MCS-RO-BASE and MCS-SI-BASE to the MCS-MAGNUM-12. This allows
the
MCS-MAGNUM-12 to control 10 relays, 4 analog outputs and read 16 sensors inputs.
Multiple MCS-MODBUS-IO-12 boards may be connected to the MCS-MAGNUM-12 following
the
MCS-I/O standards.
