MCS Demostration Unit

Demonstration Unit

MCS-MAGNUM DEMO-12

MCS-MAGNUM-DEMO-12

documentation

Description

MAGNUM-DEMO-12 consists of a Magnum micro-controller mounted to a backplane and attached to a stand-along with a keypad and display.

Spec Sheets

MCS-MAGNUM-DEMO-12

MCS-MAGNUM-TOUCH-15.4-DEMO-12

MCS-MAGNUM-TOUCH-15.4-DEMO-12

documentation

Description

The MCS-TOUCH-15.4-DEMO-12 consists of a Magnum micro controller, MCS-RO-BASE, MCS-RO-EXT, MCS-SI-BASE, MCS-SI-EXT expansion boards and a MCS-TOUCH-15.4. Also installed in the Demo unit is a MCS-EXV DRIVER, MCS-500 Transducer with cable, MCS-THERMOSTAT, MCS-ZONE, MCS-CT300, a MCS-POCKET ROUTER and a MCS-T100.

Spec Sheets

MCS-MAGNUM-TOUCH-15.4-DEMO-12

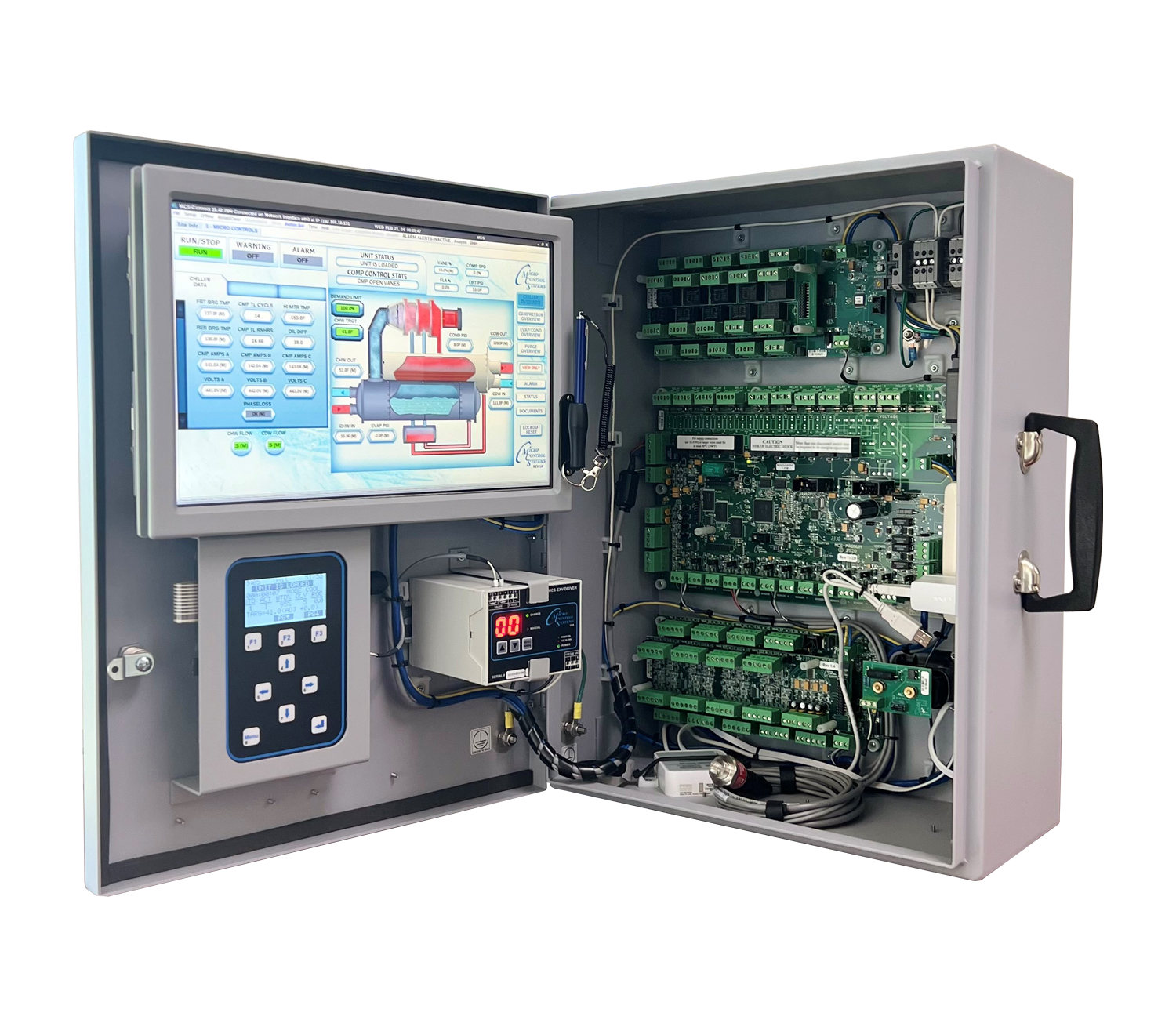

MCS-MAGNUM TOUCH-15.4-KP-DEMO-12

MCS-MAGNUM-TOUCH-15.4-KP-DEMO-12

documentation

Description

MCS-SHIELDWIRE-GROUNDING multi-terminal splicing connector should be used on all 12 volt MAGNUM or MicroMag installations to safely ground the sensor drain shield wires to eliminate stray electrical current, thereby helping to reduce line noise from the sensors to the controller.

Spec Sheets

MCS-SHIELDWIRE-GROUNDING-KIT Spec Sheet
